Descripción

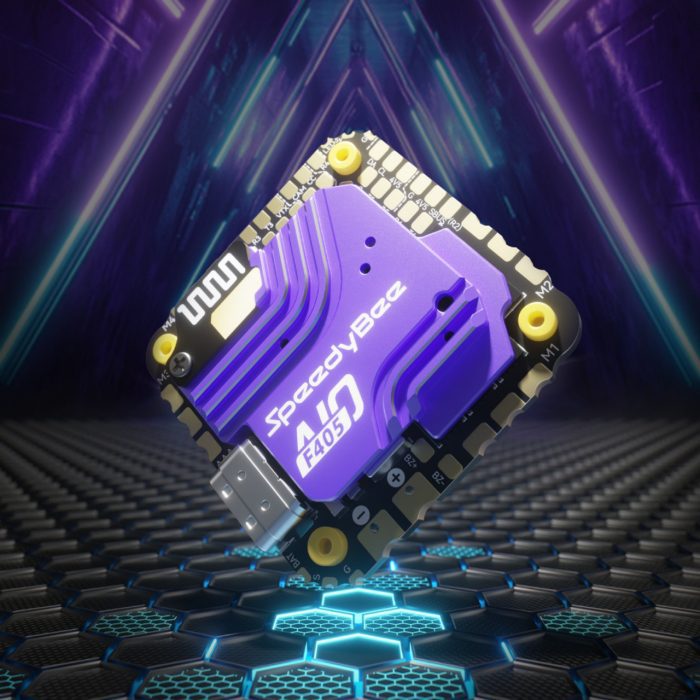

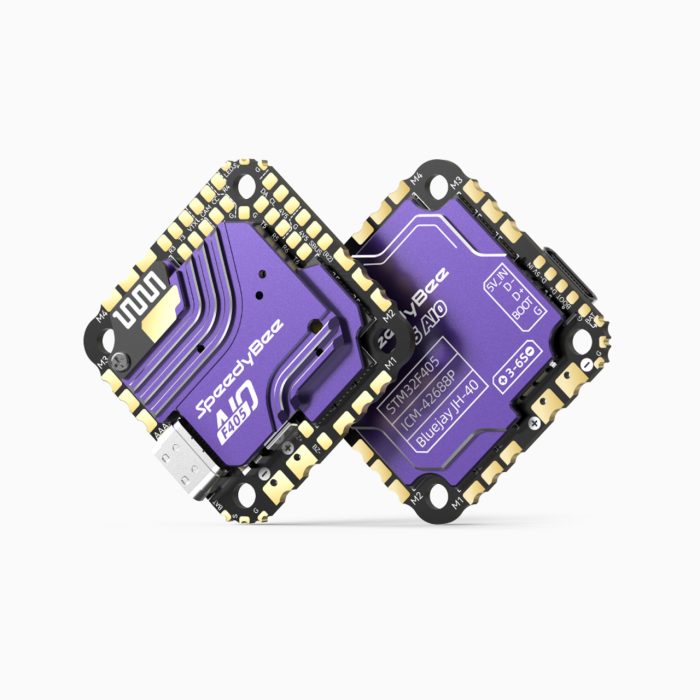

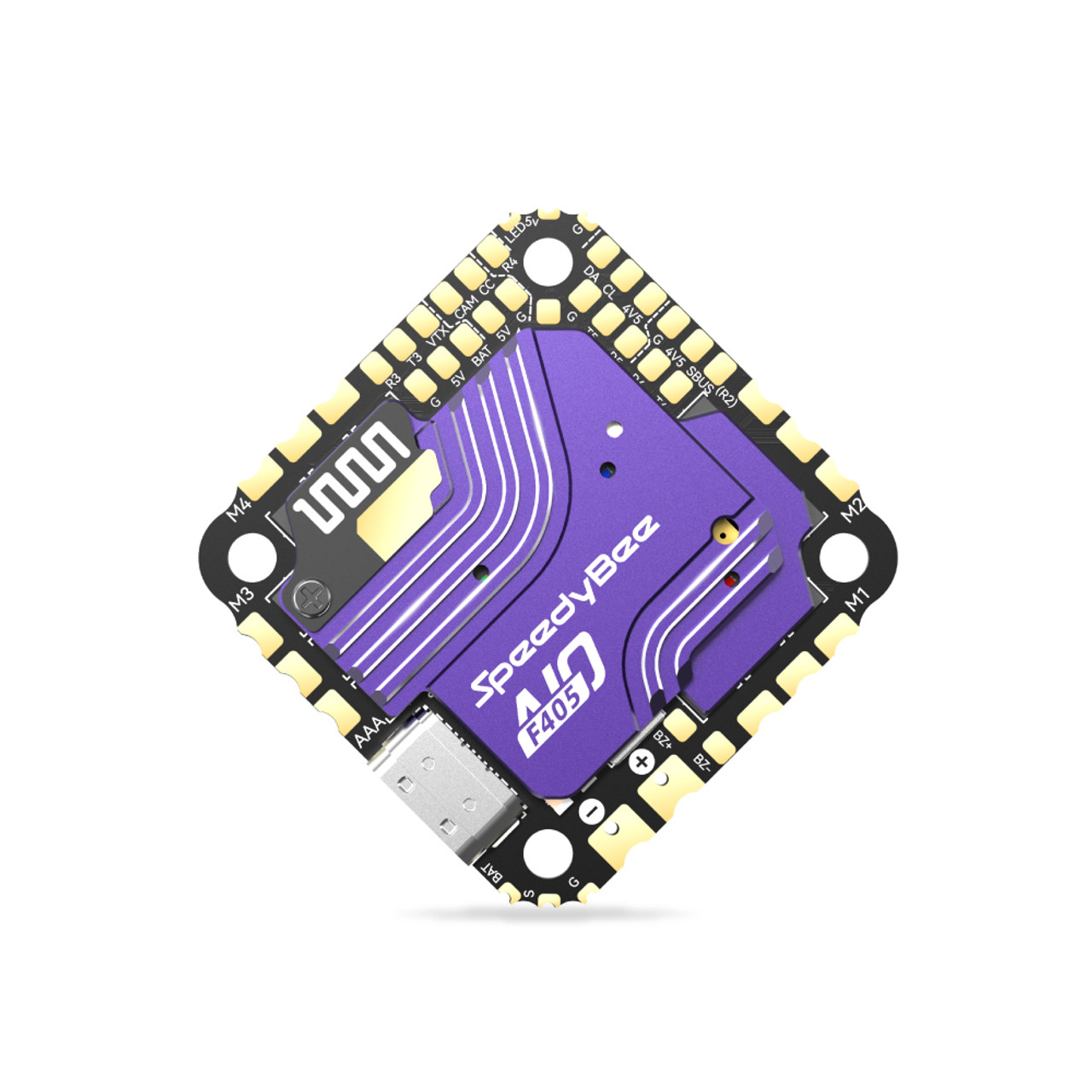

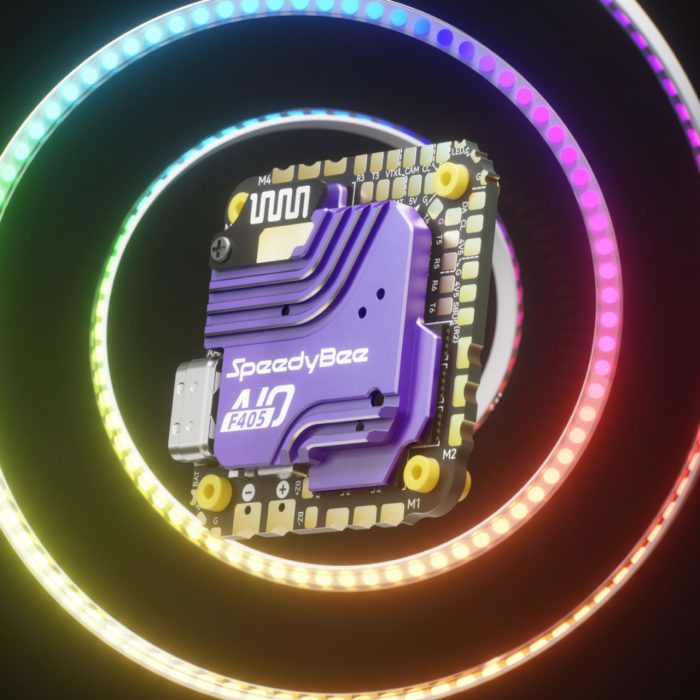

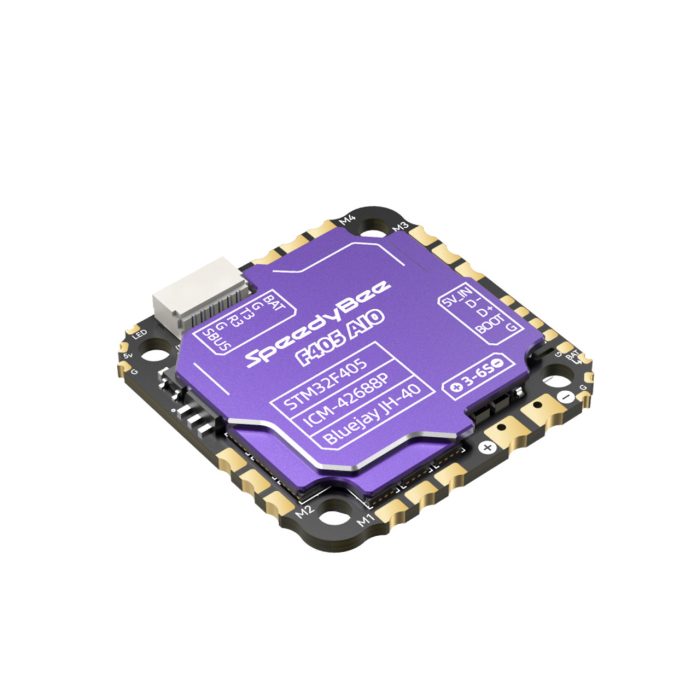

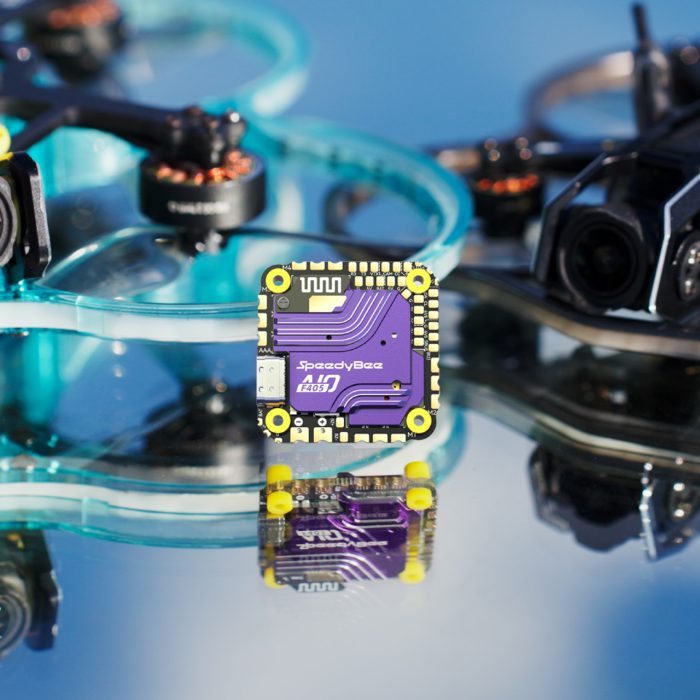

SpeedyBee F405 AIO 40A

NOTA IMPORTANTE: Después de recibir el producto y ANTES DE SOLDAR, conéctelo primero a BF y asegúrese de que todo funcione correctamente. Si tiene alguna duda, póngase en contacto con nuestro servicio técnico.

Flight Controller
Product Name: SpeedyBee F405 AIO
MCU: STM32F405
Gyro; ICM-42688P
USB Port Type: Type-C
Barometer: SPA06-003
OSD: Supported
Bluetooth BLE Supported: Bluetooth speed enhancement – 2.0
DJI Air Unit Connection Method Supports both 6-pin direct insertion and soldering
6-pin DJI Sky Port Direct Insertion Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
Flash (for BlackBox) 8MB
Betaflight CC Pads (Camera Parameter Adjustment) Supported
Input Voltage 3S-6S LiPo battery
MOTOR: M1-M4
UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
I2C: Supported
LED Pads Supported: used to control WS2812 LED lights
Buzzer Pads Supported: BZ+ and BZ- pads
BOOT Button Supported: press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
Supported Flight Controller Firmware: BetaFlight (Default), INAV
Firmware Target Name:  SPEEDYBEE F405AIO
Mounting: 25.5 x 25.5 mm, 2mm hole diameter
Dimensions: 33.0mm (length) * 33.0mm (width) * 8mm (height)
Weight: 13.6g (including CNC)

ESC
Product Name: SpeedyBee F405 AIO
Input Voltage: 3-6S LiPo battery
Continuous Current: 40A
Burst Current: 45A (10s)
ESC Protocol Supports: DSHOT600/300; other protocols may cause severe errors, please use with caution.
Output Voltage: VBAT battery voltage (used to power the flight controller)
Current Sensor Supported: (Scale = 254, Offset = 0)
Firmware: Bluejay JH-40 48kHz
